Fontaine Fifth Wheel Parts Kits







Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

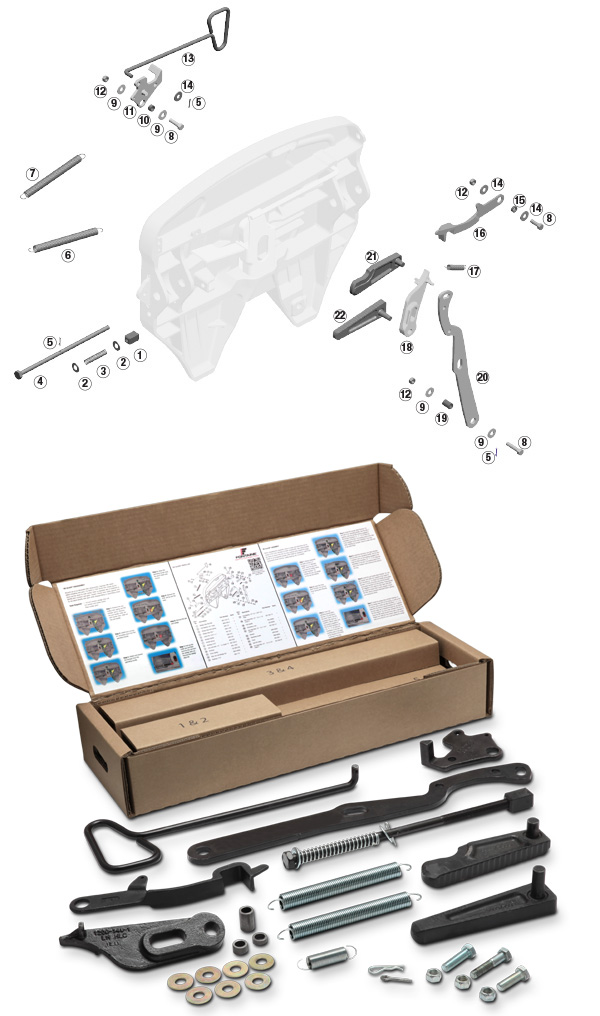

Rebuild Kit for No-Slack®

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
NT (SLTPLUNT)

Note: Rebuild for left side handle SL (driver) models only. Use individual parts kits if you need to rebuild a right side handle SR (passenger) model. Rebuild kit is not for H7 top plates.

Part number:
KIT-RX-67NTL








Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

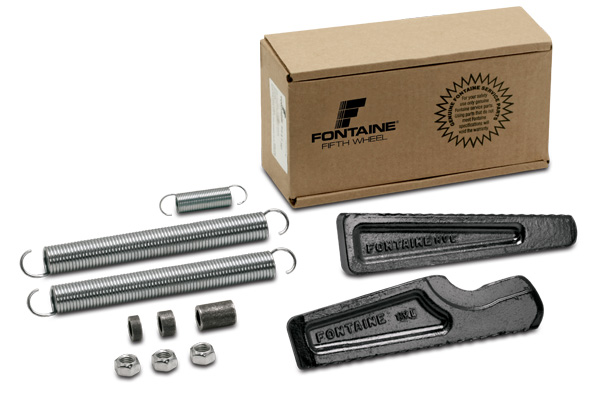

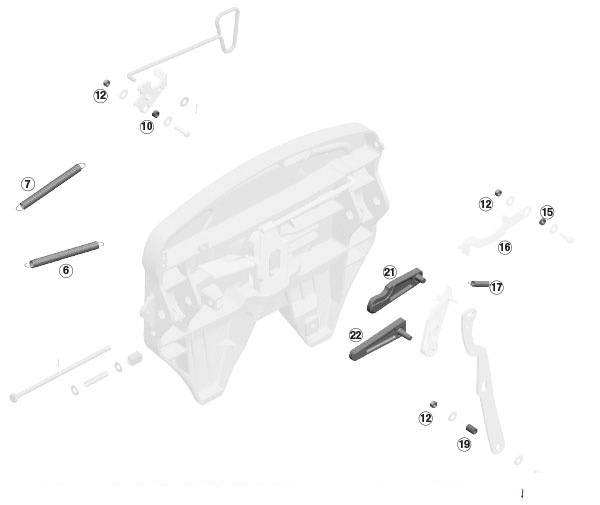

Jaw/Wedge Lock Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Part number (Left Driver Side Handle):
KIT-RPR-6000L

Part number (Right Passenger Side Handle):
KIT-RPR-6000R

Item Description Quantity
6 Bumper spring 1
7 Handle spring 1
17 Timer spring 1
21 Step jaw 1
22 Wedge 1
10 Bushing, 7/16" 1
15 Bushing, 5/16" 1
19 Bushing, 1 1/4" 1
12 Hex lock nut, 1/2" - 13 1






Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

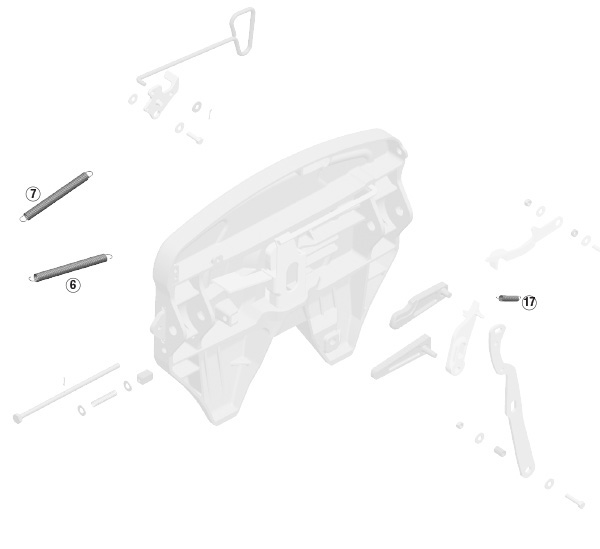

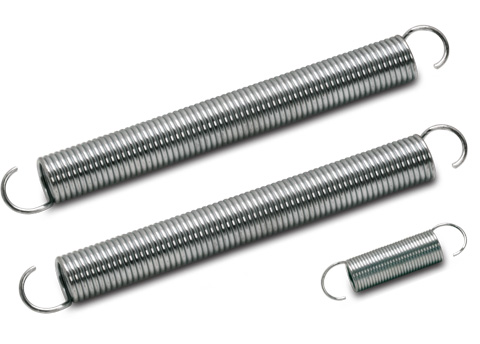

Spring Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Part number:
KIT-SPRING

Item Description Quantity
6 Bumper spring 1
7 Handle spring 1
17 Timer spring 1






Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

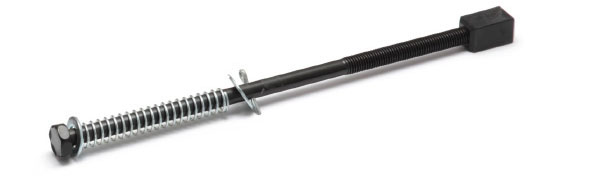

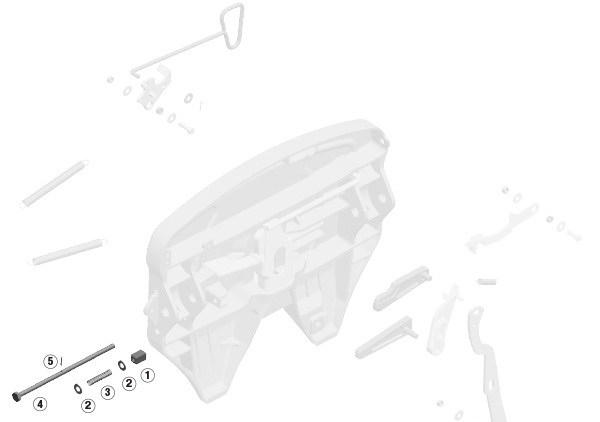

Adjustment Rod Bolt for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
H5092, X5092

Part number:
KIT-ROD-1108

Item Description Quantity
1 Wedge-stop rod nut 1
2 Flat washer, 5/8" I.D. 2
3 Wedge-stop rod spring 1
4 Wedge-stop rod 1
5 Cotter pin, 3/16" x 1" 1






Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

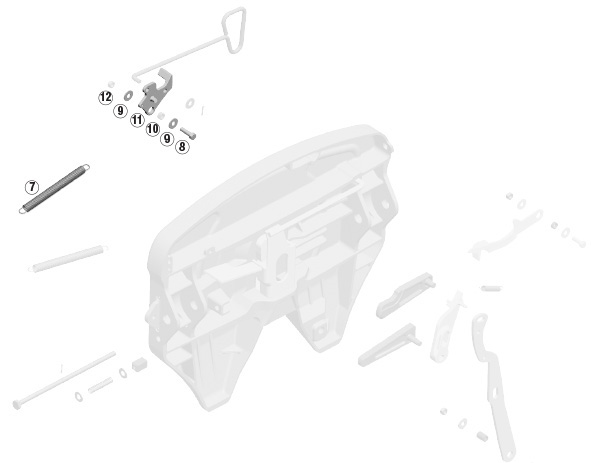

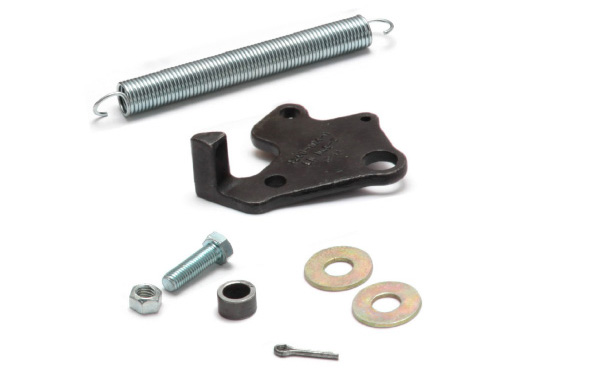

Secondary Lock Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Part number (Left Driver Side Handle):
KIT-LAT-6000L

Item Description Quantity
7 Handle spring 1
8 Hex head bolt, 1/2" - 13 1
9 Flat washer, 1/2" I.D. 2
10 Bushing, 7/16" 1
11 Secondary lock 1
12 Hex lock nut, 1/2" - 13 1
5 Cotter pin, 3/16" x 1" 1






Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

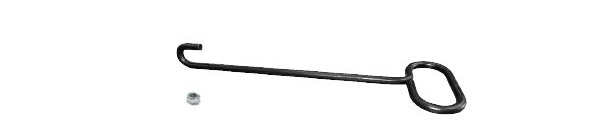

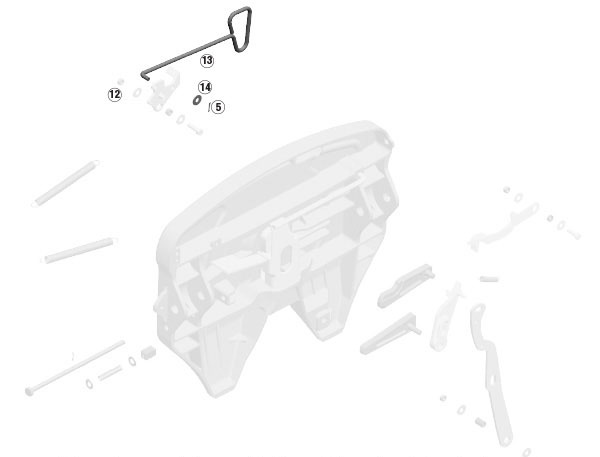

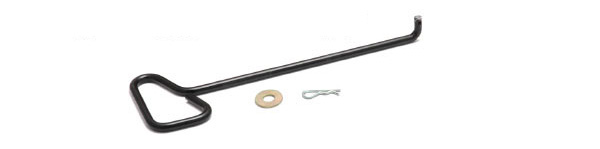

Pull Handle Kit for:

Pull Handle Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Designed for all No-Slack® Models except Heavy Duty H7
Part number (Left Driver Side Handle):
KIT-PUL-6000L

Part number (Right Passenger Side Handle):
KIT-PUL-6000R

Designed for Heavy Duty No-Slack® H7
Part number (Left Driver Side Handle):
KITPULH7

KIT-PUL-6000L or R6000/7000/7000CC/NT
Item Description Quantity
13 Pull handle 1
14 Flat washer, 1/2" I.D. 1
5 Cotter pin, 3/16" x 1" 2





KITPULH7
H7
Item Description Quantity
13 Heavy Duty Pull Handle 1
12 Hex lock nut, 1/2" - 13 1







Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

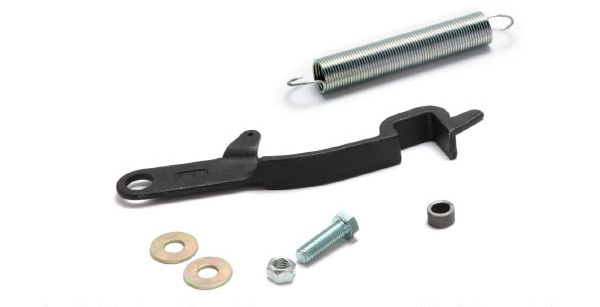

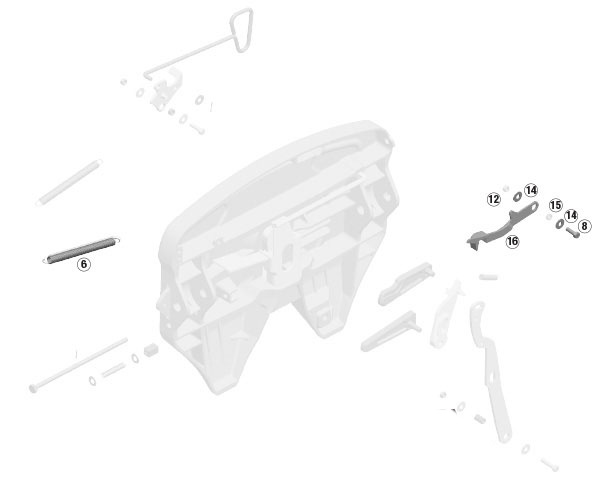

Bumper/Trigger Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Part number (Left Driver Side Handle):
KIT-BPR-6000L

Part number (Right Passenger Side Handle):
KIT-BPR-6000R

Item Description Quantity
12 Hex lock nut, 1/2" - 13 1
14 Flat washer, 1/2" I.D. 2
15 Bushing 2
8 Hex head bolt, 1/2" - 13 1
16 Bumper 1
6 Bumper spring 1








Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

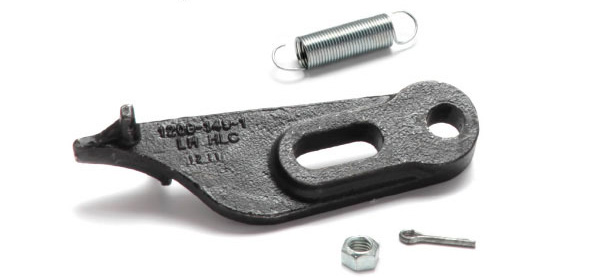

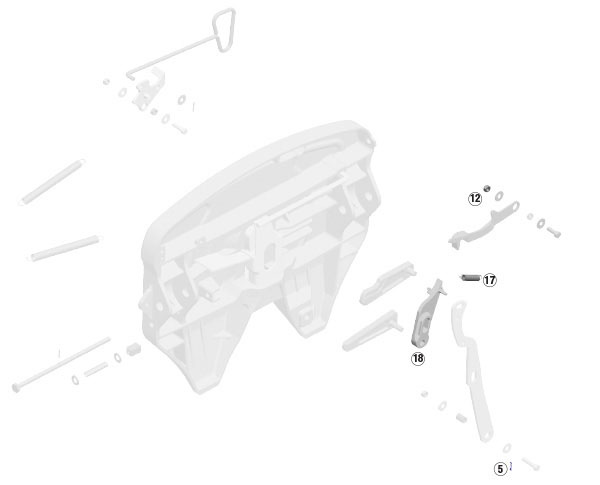

Timer Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Part number (Left Driver Side Handle):
KIT-TMR-6000L

Item Description Quantity
17 Timer spring 1
18 Timer 1
12 Hex lock nut, 1/2" - 13 1
5 Hair pin cotter 1








Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

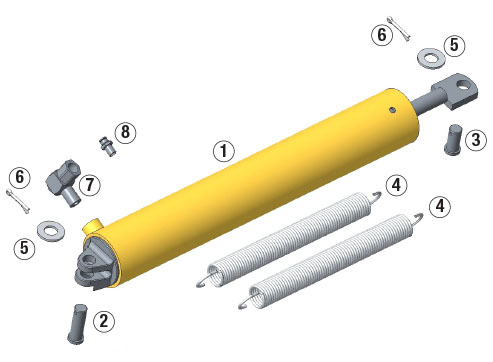

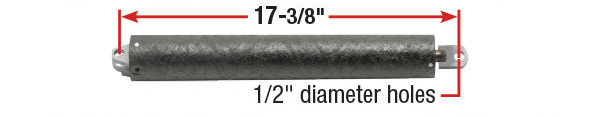

Air Cylinder Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC)

Part number (Left Driver Side Handle):
KIT-AA-6000L

Item Description Quantity
1 Hex head bolt 1
2 Hex lock nut 1
3 Air cylinder 1
4 Hex lock nut 1
5 Flat washer 1
6 Shoulder bolt 1
7 Springs 2








Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

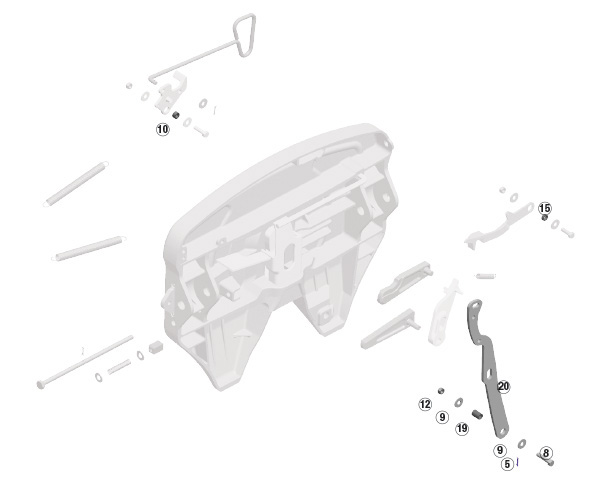

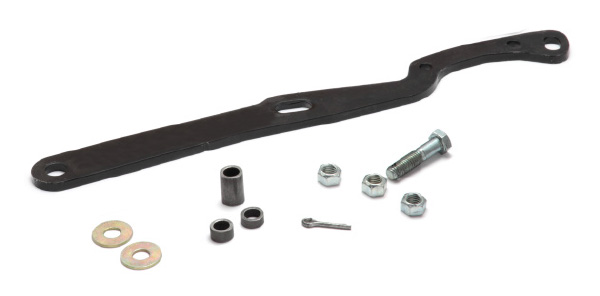

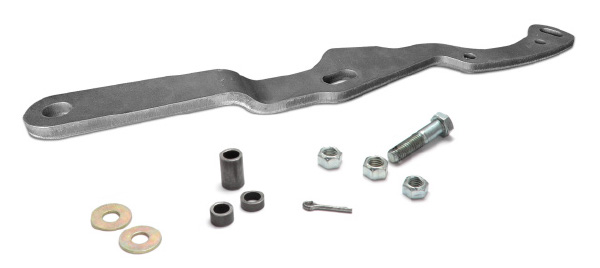

Operating Handle Kit for:

6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)

Designed for all No-Slack® Models except Heavy Duty H7 Part number:
KIT-OPR-6000

Designed for Heavy Duty No-Slack® H7
KITOPRH7



KIT-OPR-60006000/7000/7000CC/NT
Item Description Quantity
10 Bushing, 7/16" 1
15 Bushing, 5/16" 1
19 Bushing, 1 1/4" 1
12 Hex lock nut, 1/2" - 13 3
9 Flat washer, 1/2" I.D. 2
8 Hex head bolt, 1/2" ­- 13 1
20 Operating handle 1
5 Hair pin cotter 1

KITOPRH7
H7
Item Description Quantity
10 Bushing, 7/16" 1
15 Bushing, 5/16" 1
19 Bushing, 1 1/4" 1
12 Hex lock nut, 1/2" - 13 3
9 Flat washer, 1/2" I.D. 2
8 Hex head bolt, 1/2" ­- 13 1
20 Operating handle 1
5 Hair pin cotter 1








Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

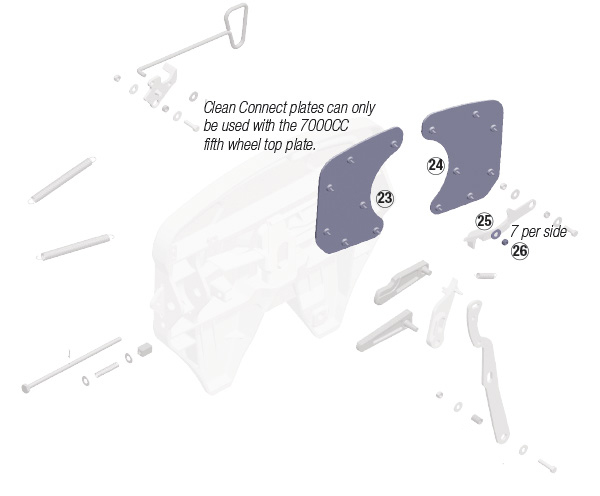

Clean Connect Plate Kit for:



7000 Clean Connect (SLTPL7000CC)

Part number (Left Plate):
CCR-PLATES-L

Part number (Right Plate):
CCR-PLATES-R

CCR-PLATES-R
7000CC
Item Description Quantity
23 Right CC plate 1
25 Flat washer 7
26 Hex lock nut 7



CCR-PLATES-L
7000CC
Item Description Quantity
24 Left CC plate 1
25 Flat washer 7
26 Hex lock nut 7







Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

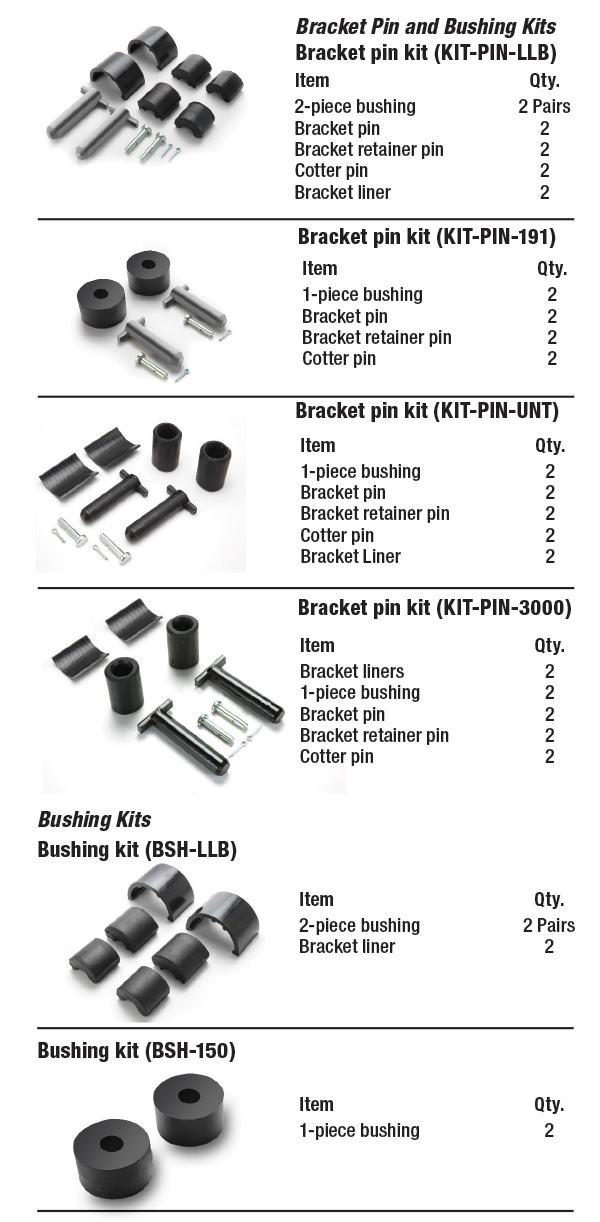

Pin and Bushing Kit for:



Sliding Brackets
Top Plate Mount Top Plate Bracket Pin Kit Bushing Kit
ATB 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
AWB 7000, H5092, H7 KIT-PIN-191 BSH-150
AWB Blocked BLAWB 7000, H5092, H7 KIT-PIN-191 BSH-150
AWX H5092, H7 BSH-150
LWB 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
LWO NT, 3000 KIT-PIN-UNT*
MTB 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
MWS H5092, H7 KIT-PIN-191 BSH-150
NWB 6000 KIT-PIN-LLB BSH-LLB
ASB NT, 3000 KIT-PIN-3000


Fixed Mount/Plate Mount
Top Plate Mount Top Plate Bracket Pin Kit Bushing Kit
APB NT, 3000 KIT-PIN-UNT*
BSL 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
BSM 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
FMA 6000, 7000, 7000CC KIT-PIN-191 BSH-150
FMA D3 6000, 7000, 7000CC KIT-PIN-191 BSH-150
PMA 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
PML 6000, 7000, 7000CC KIT-PIN-LLB BSH-LLB
PSA H5092, H7 KIT-PIN-191 BSH-150
PS5 H5092, H7 KIT-PIN-191 BSH-150
PS5 Blocked (BLPS5) H5092, H7 KIT-PIN-191 BSH-150
SMB NT, 3000 KIT-PIN-UNT*
XPSA X5092 BSH-150


*If 3000 Series top plate on the bracket or slide, use KIT-PIN-3000.





For H5092 or X5092 replacement kits click here.

For Auto Hauler CD700 Custom duty replacement parts click here.

For 3000 Series replacment parts click here.



For air slide bracket repair kits click here.
